The Best 240W Quantum Board

Detailed Description

THE BEST 240W Quantum Board 2021

1. Features:

1) Passive heat sinking, no fans, no noise, DIY design.

2) Full spectrum with IR and UV, perfect for the full stage of growing.

3) No wiring on the PCB with integrated PCB, much nicer looking.

4) With high quality Samsung led chip,Meanwell driver,  quality is guaranteed.

5) With aluminium strip to connect the panel together, can make higher watts with basic module.  Can make 240Wx2pcs,  240Wx3pcs, 240Wx4pcs etc.

2. Advantages( The Best Quantum Board on the market )

1) Use more led diodes than any other competitors, we use 312pcs led diodes for 120W,  624pcs for 240W.

2) Higher efficiency ,the best performance as led is not fully loaded by current , means lower current than others.

3) Better heat sinking:  We choose 2x 240w for 480W, each board has heat sinking, so much better than HLG.

4) Nice looking , fewer  defective ratio, we choose integrated PCB for 240W and 480W,  so fewer wiring connections.

3.  Application:

4. Specifications:

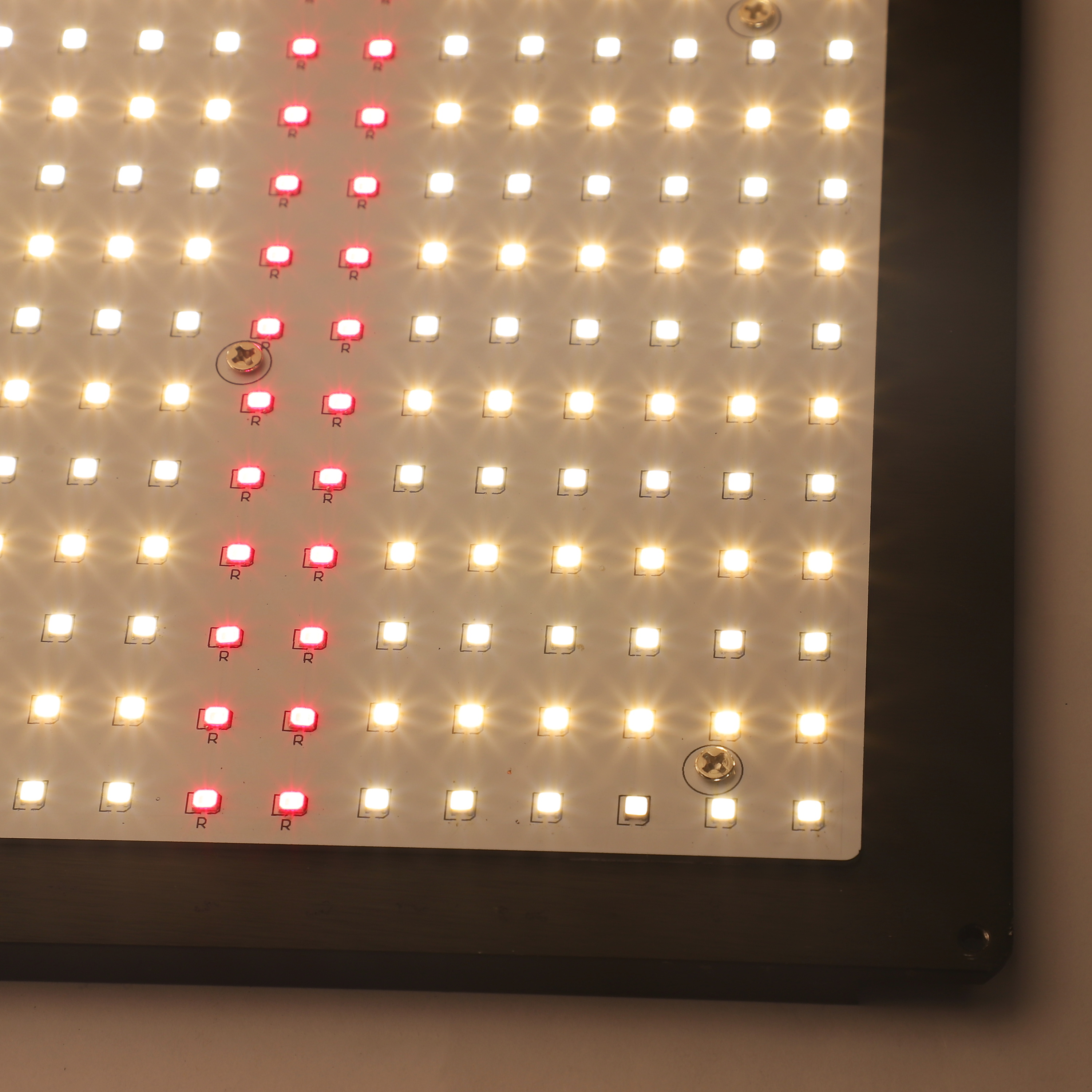

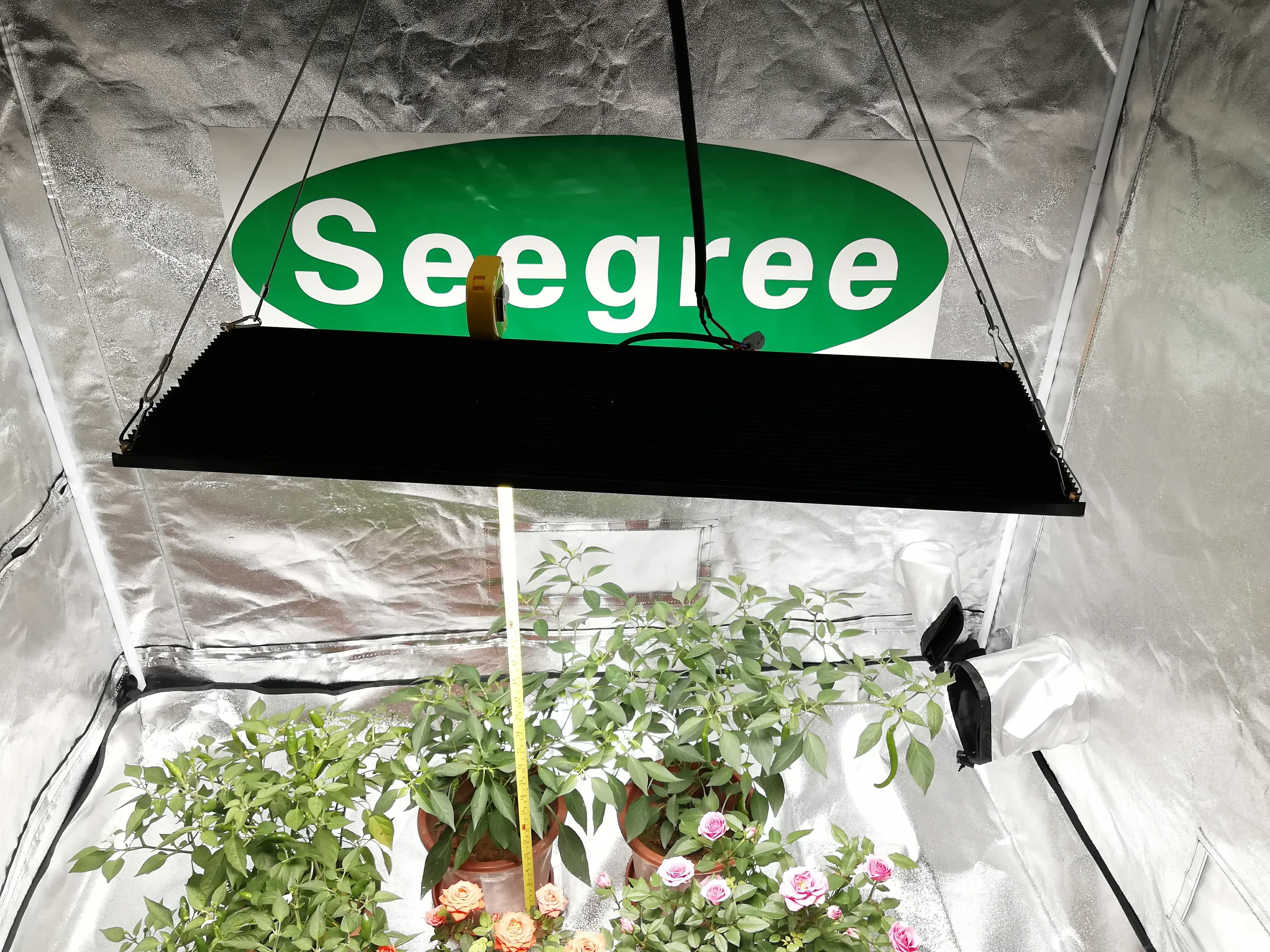

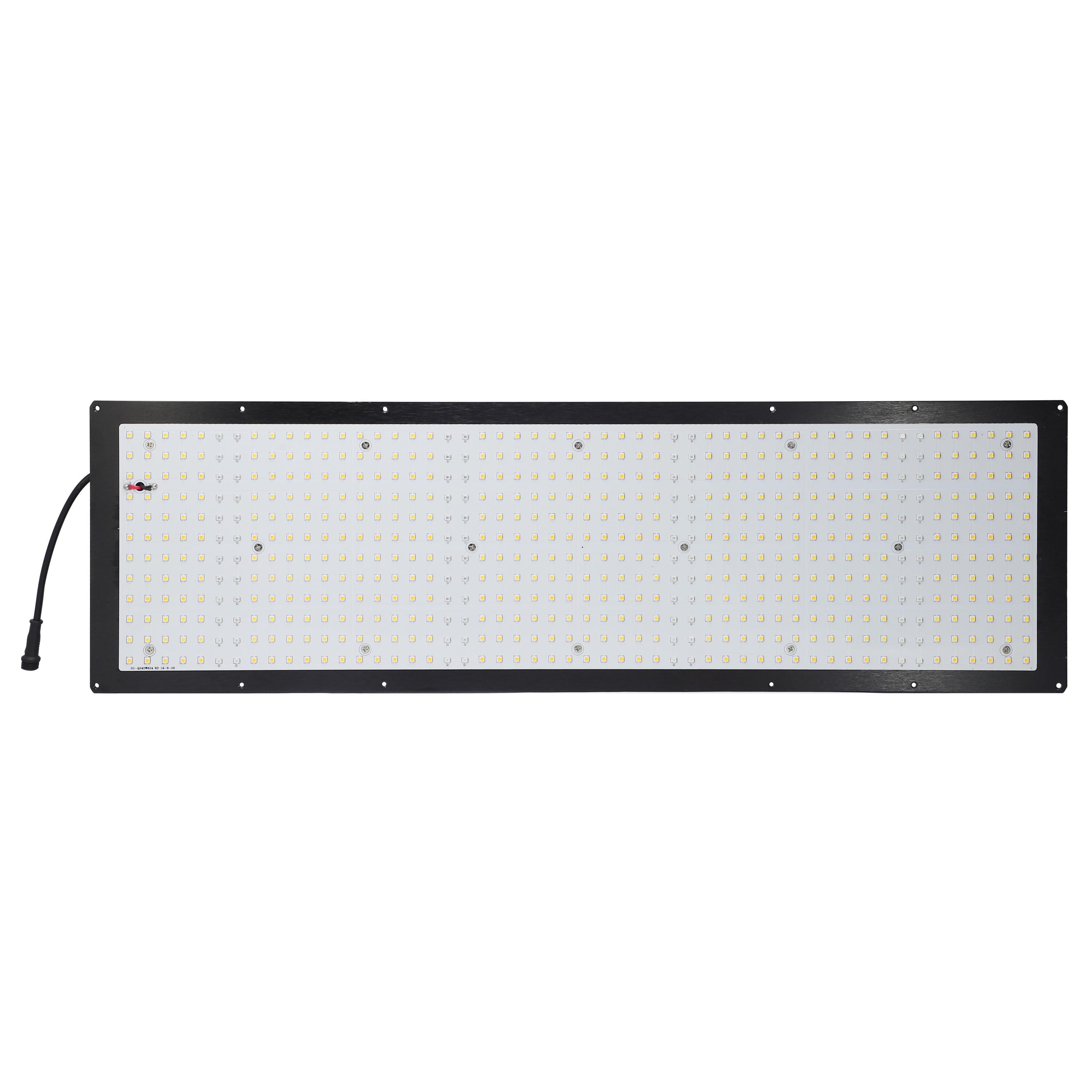

5. Photos:

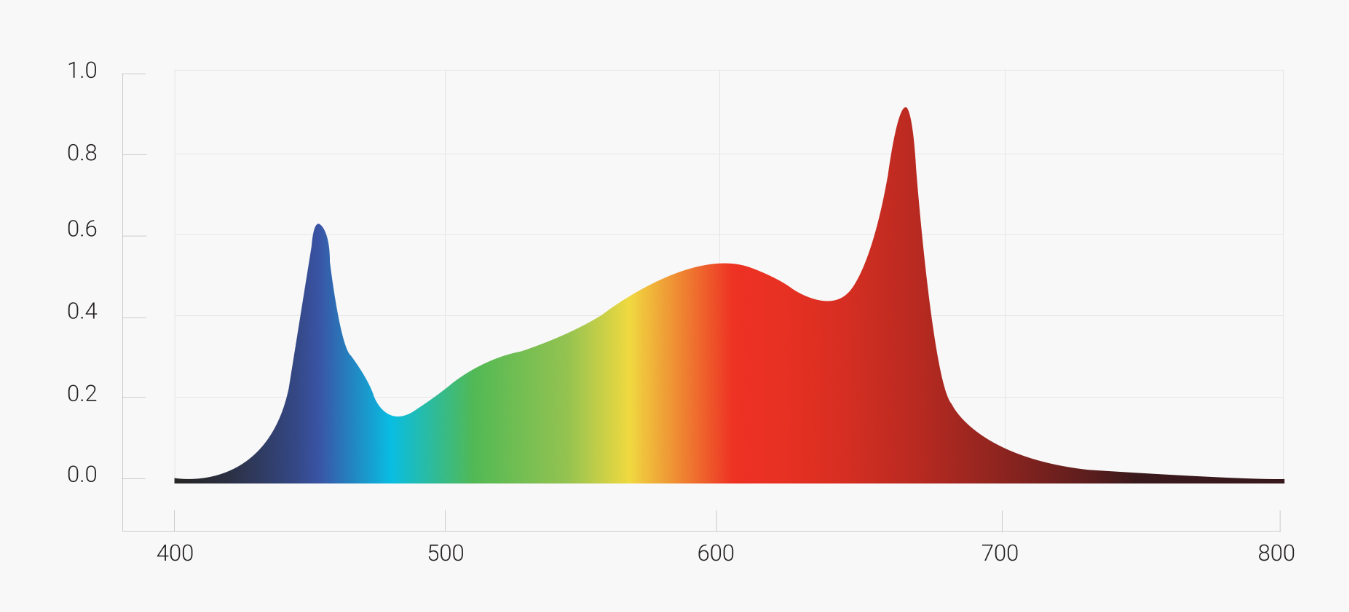

6. Spectrum:

7. PAR Rating:

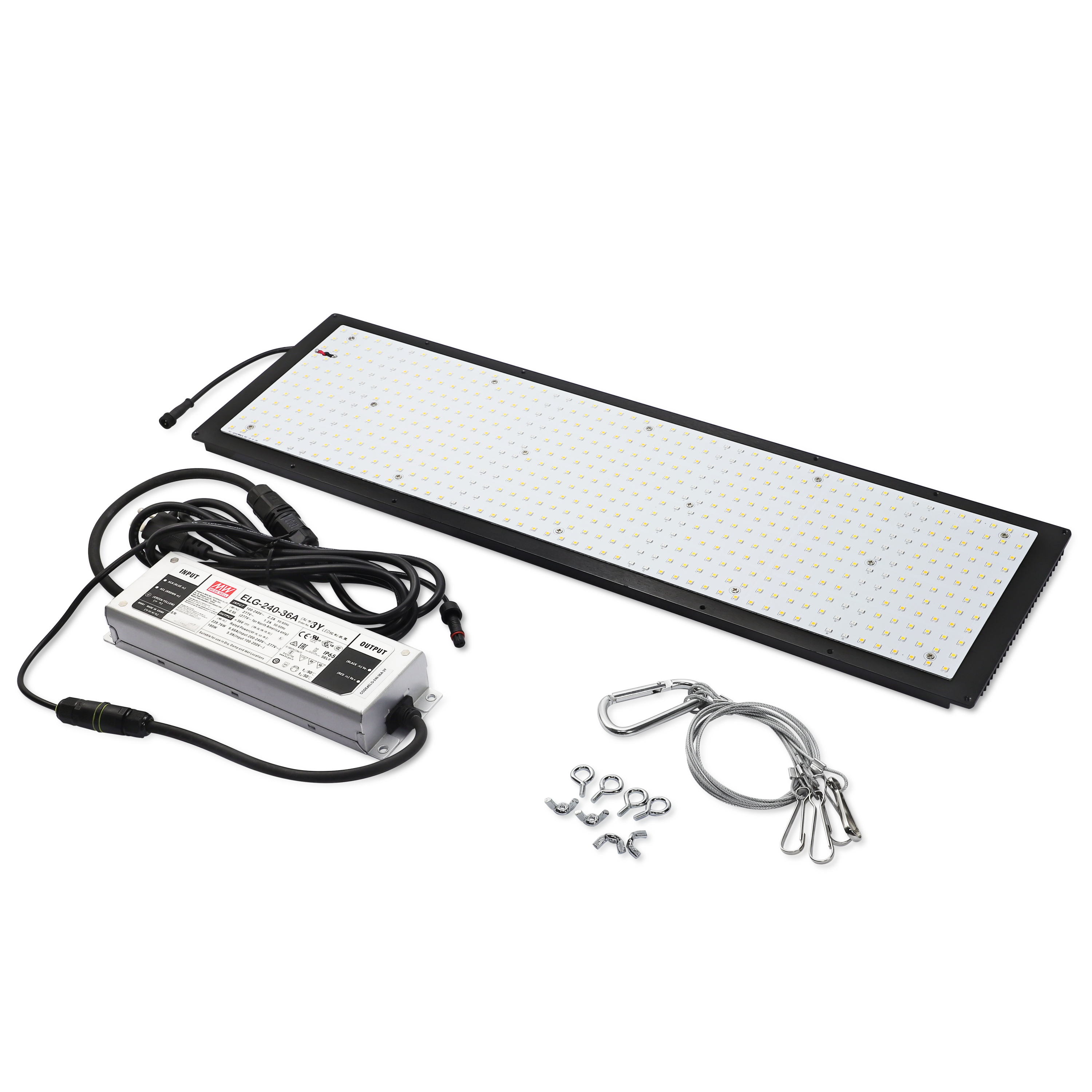

8. Packages:

    72x37x13cm/2pcs,  8.5KGS

9. Notice

1) For indoor use only.

2) For vision safety,do not look at the light directly when it is operational.

3) Socket must be wired to the earth.

4) Do not connect to live power until installation is done.

5) Please do not use the light 24 hours one day Continuously without stop.

6) Maintenance must be done by professional technicians.
